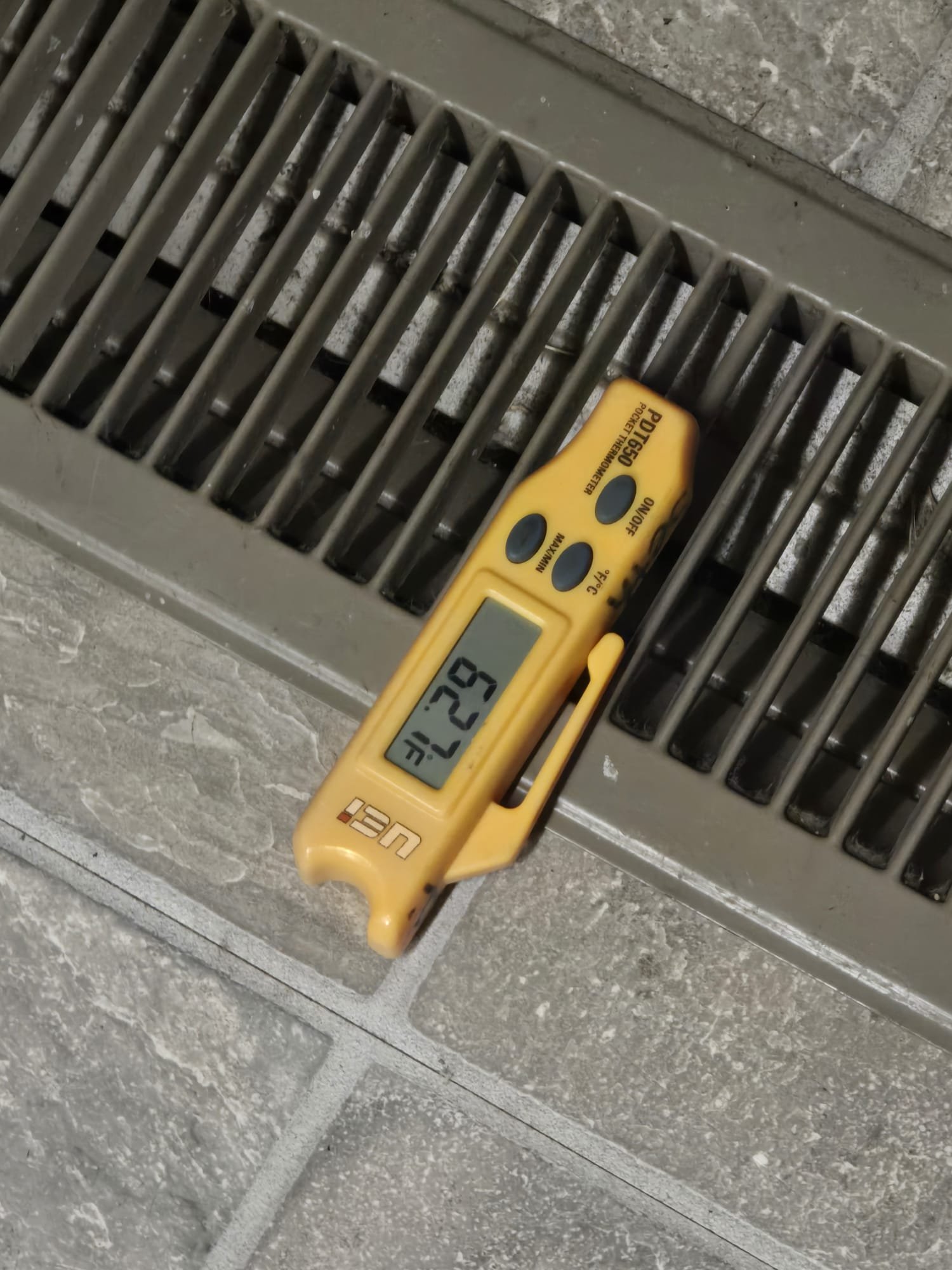

5-28-25 Cedar ridge Five system cooling season annual maintenance, tune-up, safety inspection. 3x lodge, 1x ranger station, 1x maintenance compound. All air filters in all five systems are in like new 3-week-old condition replaced by on-site maintenance crew. Inspect all blower systems and power supplies, flush drain systems and drain pans, test run all equipment in cooling mode, inspect batteries and thermostats, water flush outdoor condenser coils, inspect and test run All electronics on outdoor equipment, test all high voltage power supplies and starting relays. Install replacement blower capacitors, 370 volt power supplies, on the lodge right side Goodman, and Lennox All other cedar ridge equipment is running in very good condition no other recommendations or services required at this time Nature center Replace all air filters in all systems except both dehumidifiers and the new number 8 system that is not online yet Perform full cooling maintenance inspection, cleaning, and

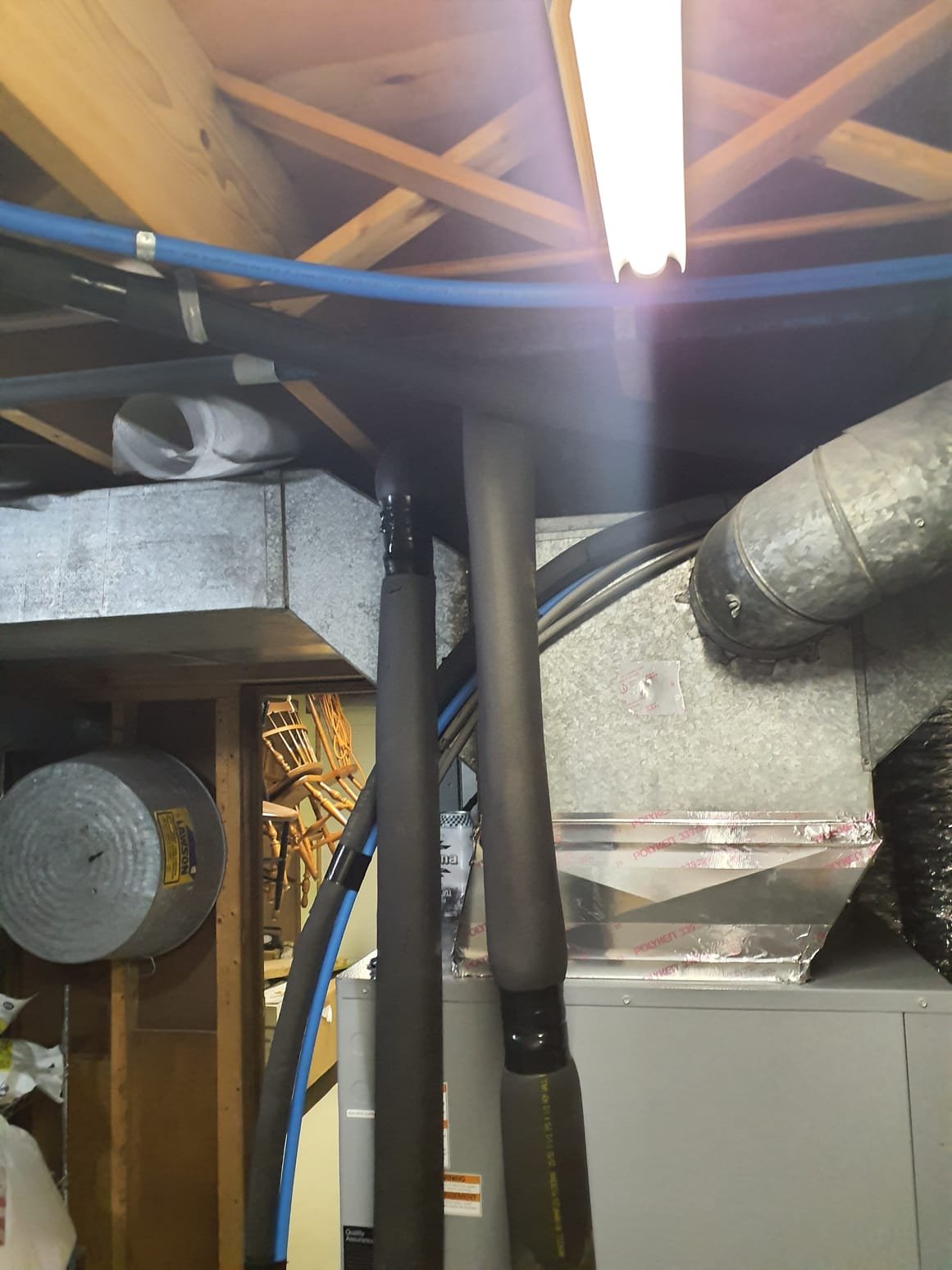

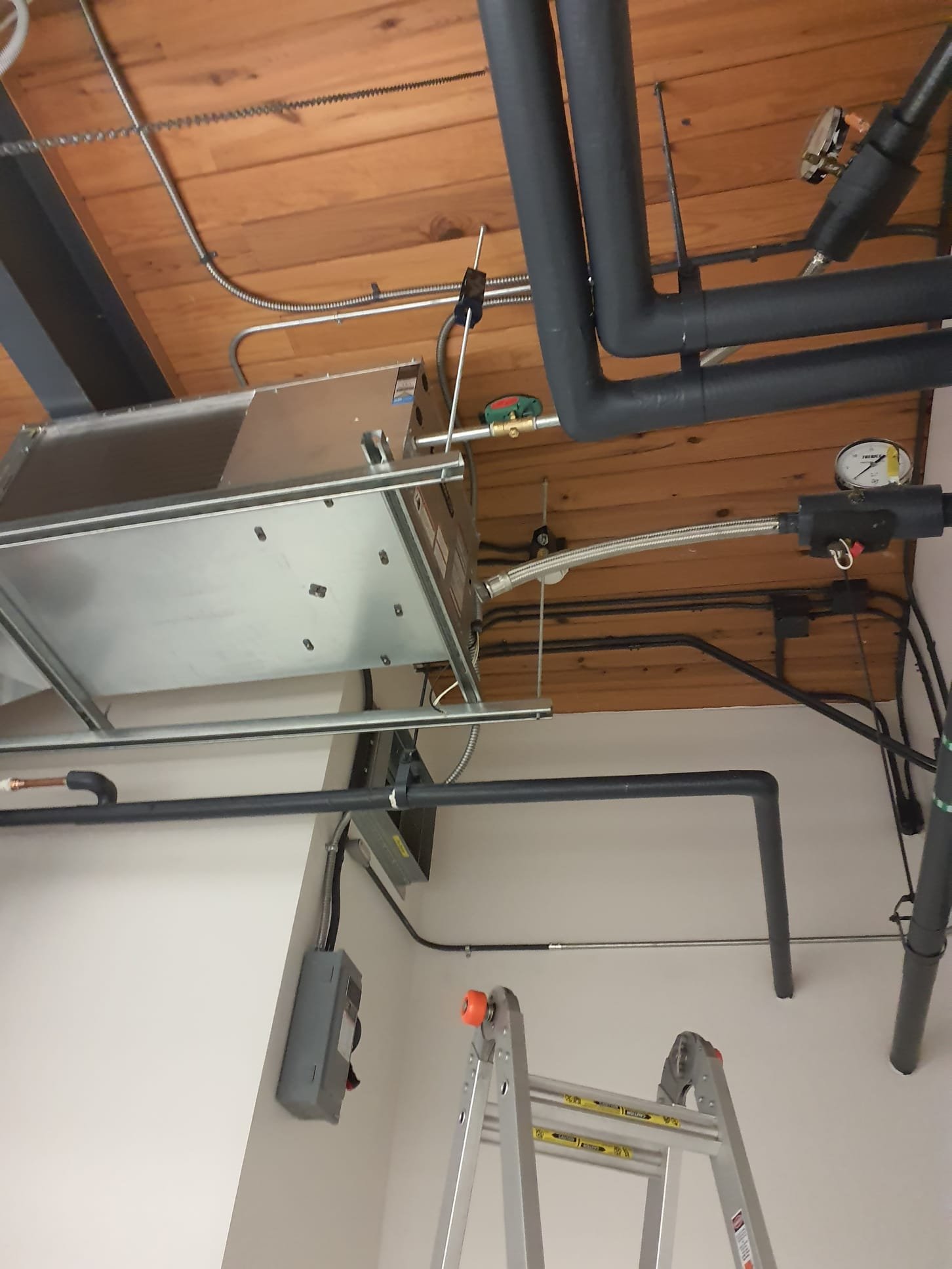

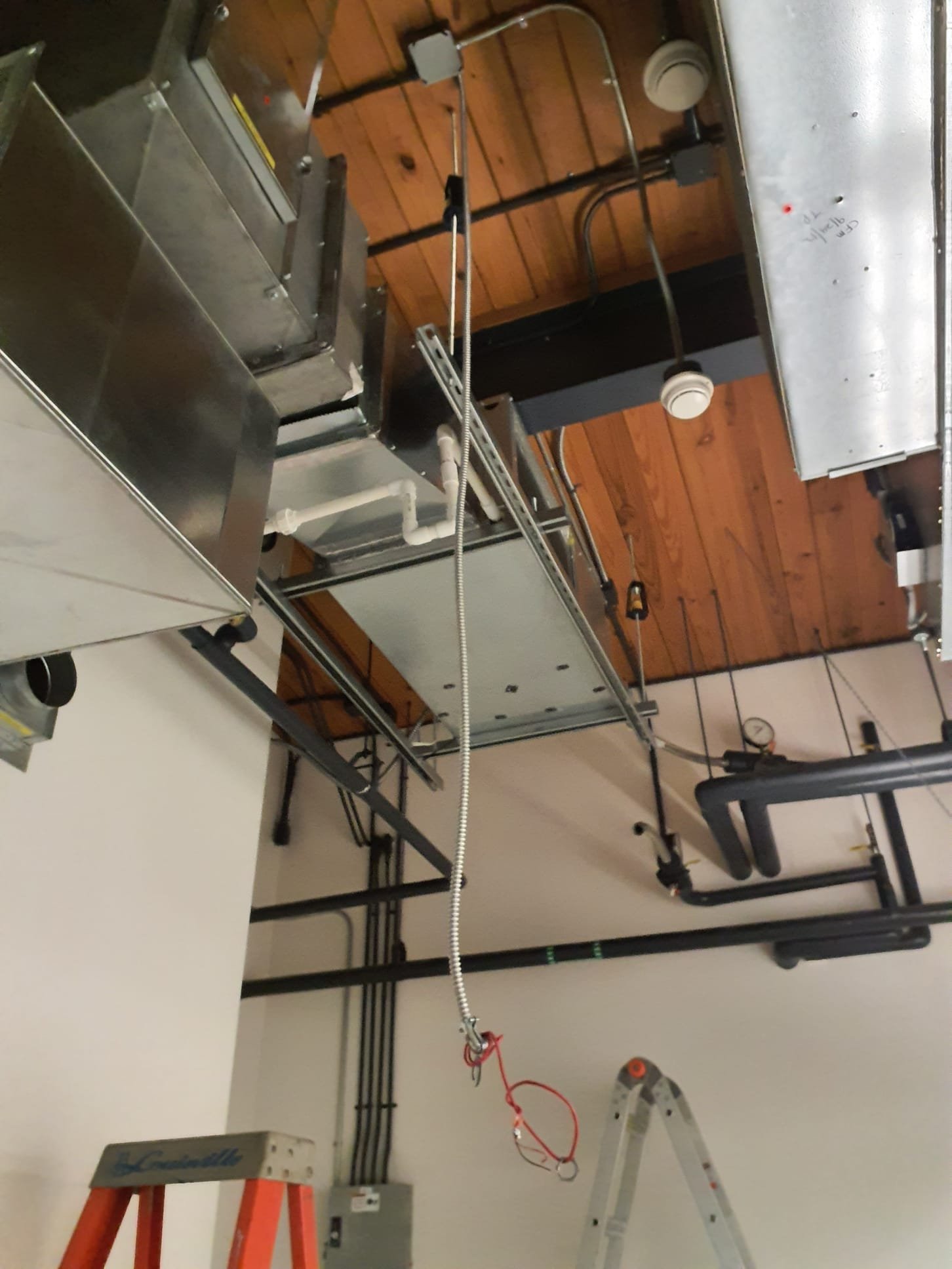

Install WaterFurnace Versatec 300 Compact Horizontal (V3) 030 -208-230/60/1 Voltage - Model #: V3AH030BS0AN4DELBENN010SSS - Serial #: 250401884 Features Included: *Aurora BACnet Controller *Loop connection kit Installation: *Reconnect to existing water loop. *Reconnect to existing high voltage electrical circuit *Transition to existing supply and return duct Warranty: (Annual maintenance must be performed) WaterFurnace manufacturers parts warranty 1 Year Westin Air labor warranty Notes: This system is provided with an Aurora BACnet controller programmed to operate with Versatec 300 system. Please contact your controls contractor to determine if it will integrate with your current controls program.
AH #2 AV room on bamt Install replacement ECM blower motor 3/4 horsepower
Nature center HP2 (AV room bsmt) Blower motor locked up OEM equivalent replacement required due to unit specific programming Seth will consult with JP and order 3/4 horsepower ECM constant torque 208/230 indoor blower motor

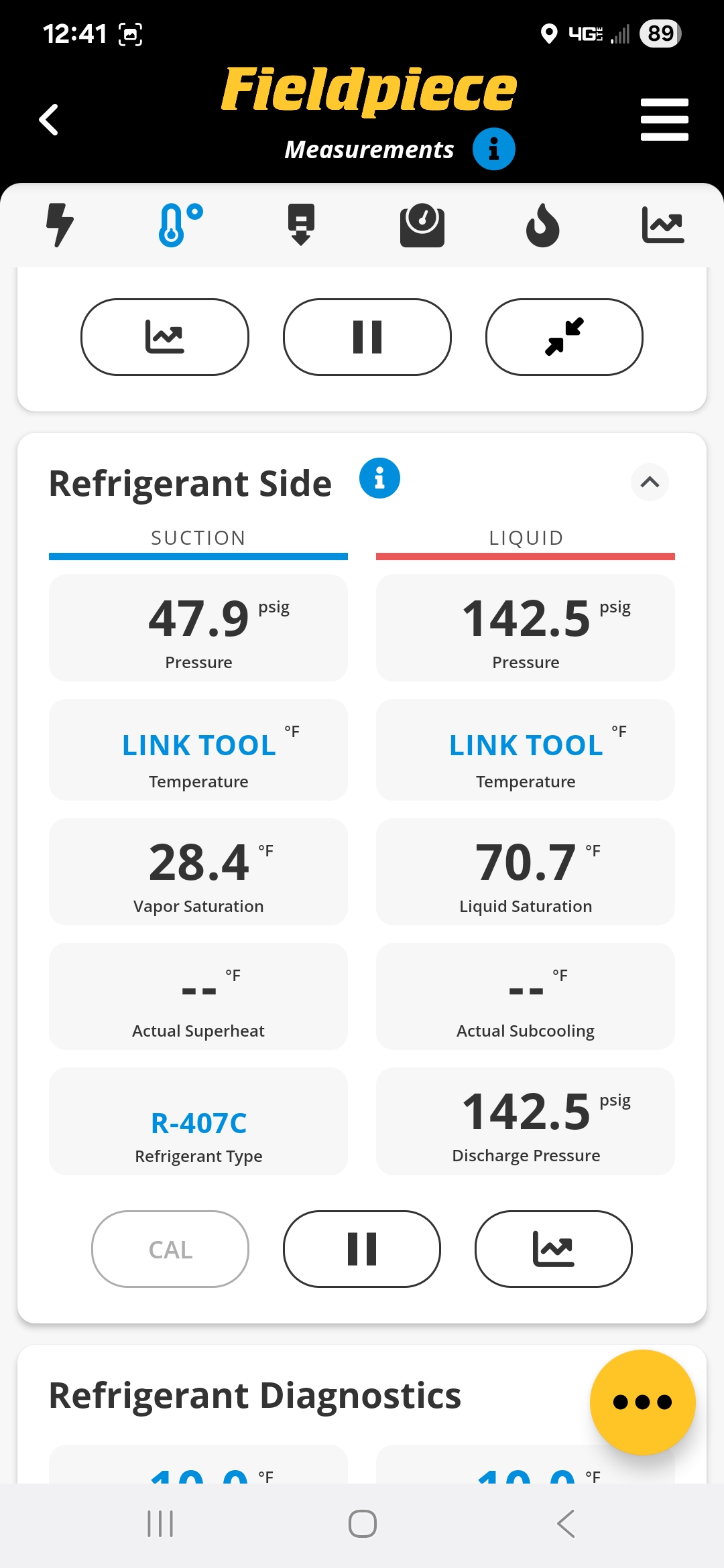

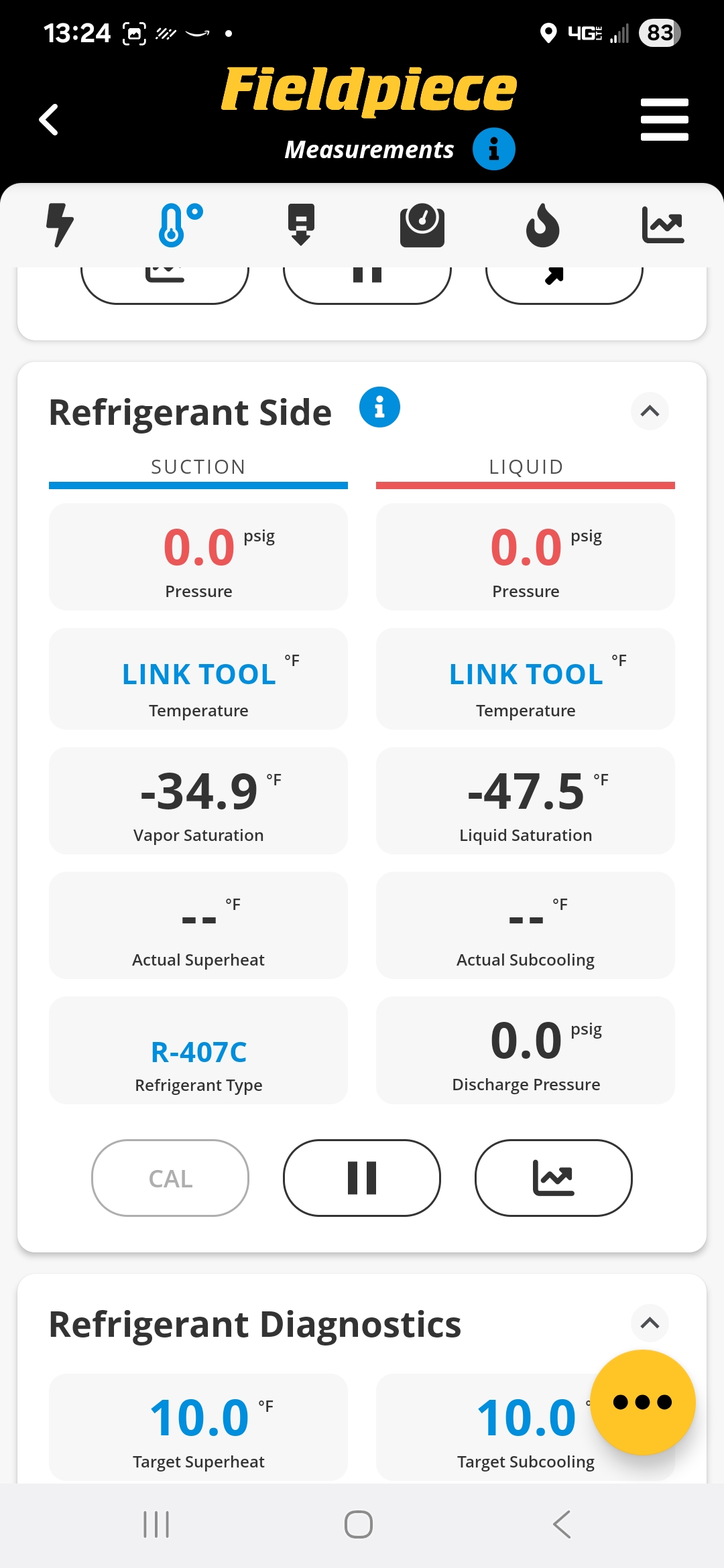

DCA (dehumidifier corporation of America} Two systems both confirmed refrigerant leaks. System two in the North main front door lobby System one to the south in the main lobby area has visible oil staining on the cooling\dehumidification coil and refrigerant pressures are running very very low. 48 and 143. System is producing an air temperature change from 72.5°f return to 77.1° with a minimal humidity reduction from 63.4% to 57.3%RH. System 2 at the main front doors is not running at all due to 0 PSI of refrigerant R407C After discovering 0 PSI and possible die on the cooling / dehumidifying coil nitrogen pressure confirmed the leak with soap bubbles and video Both systems need air coils replaced The south system is still running with low refrigerant pressure The north system has the power turned off and will not run is it uploading I knew 10 or 15 minutes it might take it Seth will consult with JP and prepare estimates for repair and replacement All equipment in the buildin

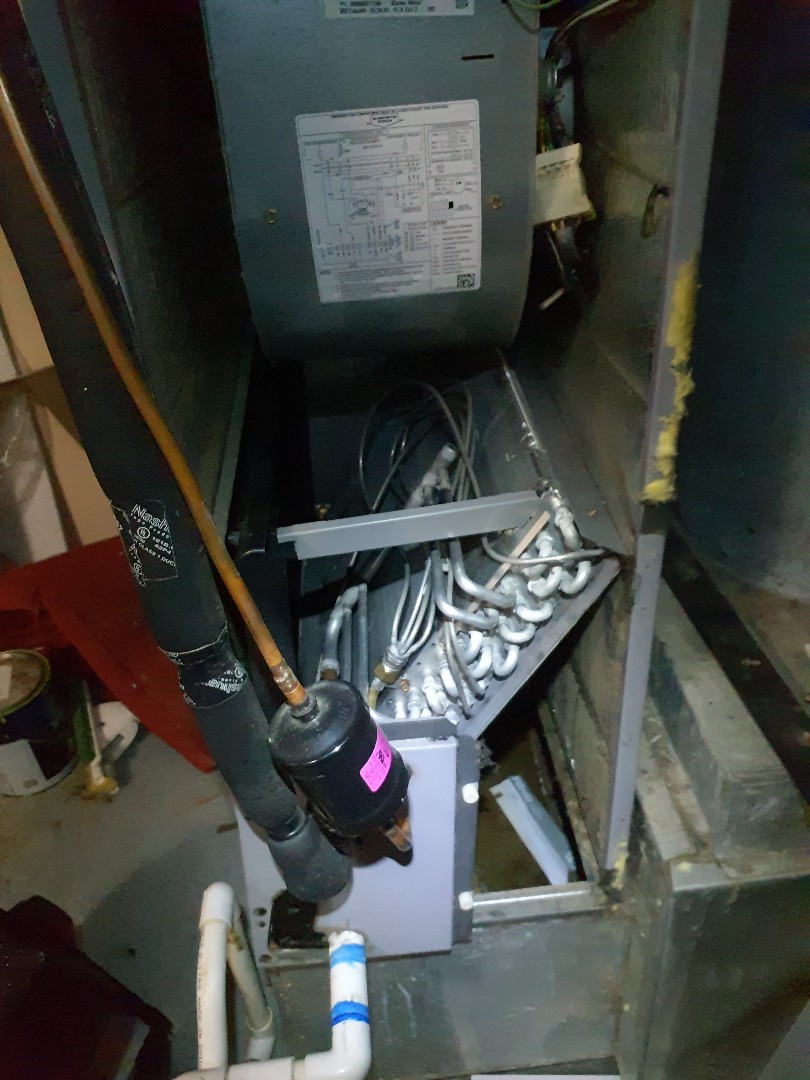

Recover all of refrigerant, remove and replace thermostatic expansion valve and liquid line filter dryer, nitrogen pressure test, evacuation micron test to 700 microns, recharge with 81 oz new R410A The heating refrigerant circuit is running in very good condition at this time with acceptable refrigerant pressures 21 PSI higher than running test pre-part replacement. Running pressures before 68\345 Running pressures after 89\335 @ 42°incoming pressurized ground loop and producing 94° supply temperature with 67 return
Cooling circuit has a actively failing thermostatic expansion valve dropping the suction pressure to below 60 with 40 superheat. The addition of refrigerant for testing purposes only increased the discharge pressure from 330 up to 380 while suction pressure continued to drop. Carrier climate Master system needs new heating TXV, refrigerant line filter dryer, 81 oz new R410A Removed compressor shipping brackets Seth will contact climate Master and prepare estimate for homeowners 50YD049JCB301 3608V61365
Daikin Fit system Noise concern Sound they are hearing is the EEV (electronic expansion valve) doing a self-test. Demonstrated it by resetting the power to the furnace, which causes the valve to go through the test. System is operating normally at this time.

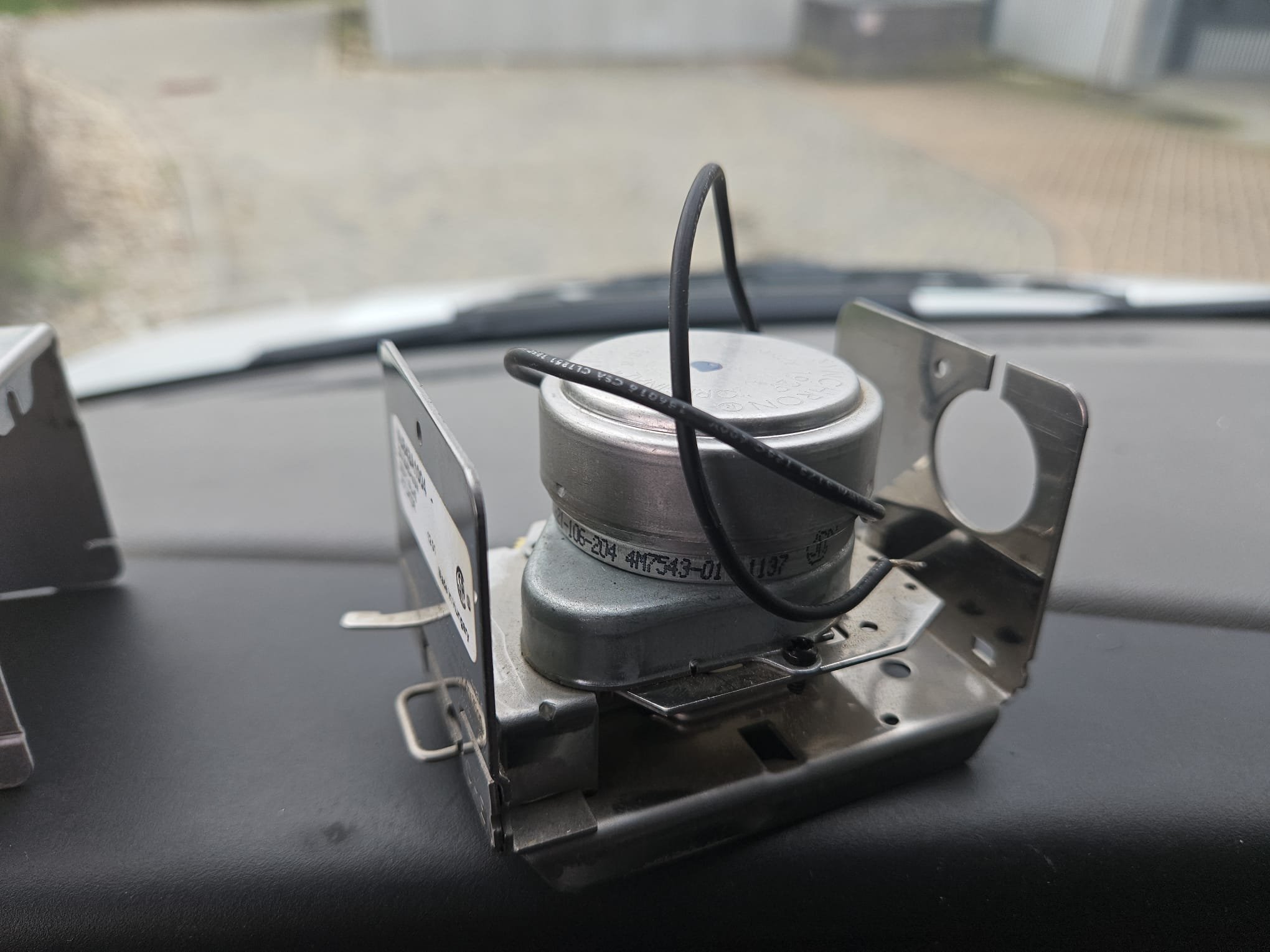

Replace gas valve on Goodman furnace number 1 in lodge. Replace gas valve on Bryant 80% furnace in Old Barn. Replace gas valve on North maintenance shop hot dawg heater. Replaced three gas valves. Installed propane conversion kits, and set Manifold gas pressures to manufacturers specifications. Test ran in heat mode to test operation and temperature rise. All three properly running within temperature rise.
Furnace operating upon arrival. ADJUSTED BLOWER SETTINGS DUE High static pressure..VERIFIED OPERATION WITH CLIENT and set up account for Daikin .System is operating normal at this time
Called through service Titan and spoke with Eric to discuss non-functioning shop heater. He will try a few things and let us know if he still needs a service call
Service 10 heaters in cedar ridge including maintenance shop, old barn, north and south bathrooms, Lodge, and ranger station. Combination of hanging heaters, standard efficiency and high efficiency gas furnaces all using LP propane gas and one electric only air handler Maintenance shop north hanging hot dawg heater and old barn both have single stage gas valves leaking through. The North hot dog heater has been shut down with the gas stop and electric, the old barn system is still running with a very small rate of leakage but left running due to the only heater in that area. Lodge system twin Goodman furnaces have two bad gas valves. Both systems were intermittently running upon arrival. system one on the left failed first followed by system two leaving the above conference room with no heat. Replace OEM gas valve on right side number two Goodman furnace for 50% emergency heat Left side number one Goodman furnace is still a no heat condition until the gas valve is replaced.
Install new Daikin FIT HVAC system Furnace: DM80VC0604BNA AC: DX6VSS3010A Coil: CAPEA3026B4A Daikin One communicating thermostat: DTST-TOU-A April Aire 1210 High efficiency media air cleaner * Reconnect to existing gas line and high voltage electric * Transition to existing supply and return ductwork * Start up and commission new system 12 Year Daikin manufacturers parts warranty (Annual maintenance must be performed) 2 Year Westin Air labor warranty (Annual maintenance must be performed) Lifetime Heat Exchanger Warranty (Annual maintenance must be performed)
Install new Bryant HVAC system Equipment: Furnace: 800SB36045M14 AC: GA5SAN42400W Coil: CVPVA2414XMC * Honeywell Vision Pro 8000 * Air Filtration- AprilAire 1210 (20X25) * Reconnect to existing gas line and high voltage electric * Transition to existing supply and return ductwork * Start up and commission new system 10 Year manufacturers parts warranty (Annual maintenance must be performed) 10 Year Compressor Warranty (Annual maintenance must be performed) 20 Year Heat Exchanger Warranty (Annual maintenance must be performed) 2 Year Westin Air labor warranty (Annual maintenance must be performed)
Cleaning evaporator cool on an ICP air handler.
